主要技術參數：Main Technical Parameters

可根據產品要求 訂制設備。

Can be made according to the product requires special equipment.

產品說明

適用范圍

本機適用于各種大型卷材的分切，如30g/m2-300g/m2牛皮紙、白卡紙、淋膜紙、鋁箔、PVC塑料、錫紙等卷材的分切、復卷等。

性能及特點

1. 該機采用異步伺服電機(矢量電機)控制、自動錐度張力，中心卷取方式。主機采用變頻調速，保持加速中平衡運轉。

2. 自動計米、報警功能。收卷采用A、B氣脹軸結構，卸裝操作方便。

3. 放卷采用光電自動糾偏修正系統，使不規則材料能正常分切。

4. 圓刀縱切廢邊自動排放裝置。

5. 油壓式自動上料，配氣脹軸。

6.導軌式自動下料裝置。

product manual

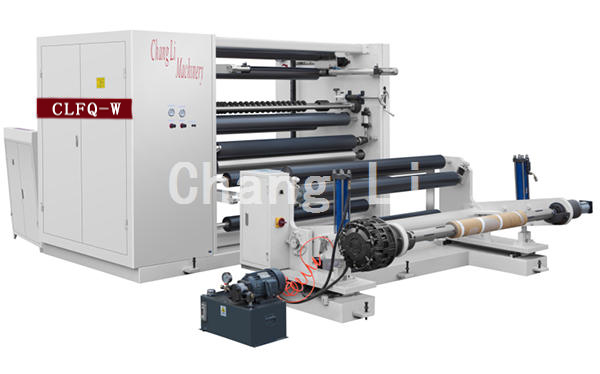

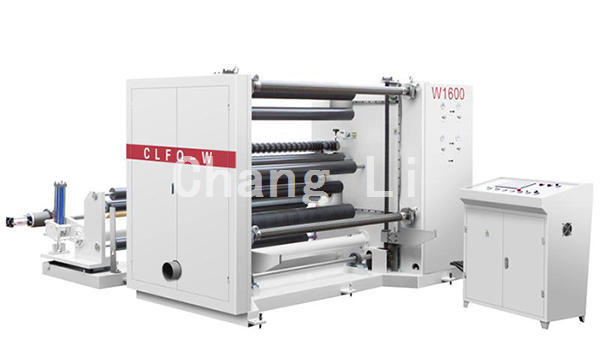

Scope of application

This machine is suitable for the slitting of various super-large coils, such as slitting and rewinding of 30g/m2-300g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.

Performance and characteristics

1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension and center winding method. The main engine adopts frequency conversion speed regulation to maintain balanced operation during acceleration.

2. Automatic metering and alarm function. The winding adopts the A and B air expansion shaft structure, and the unloading operation is convenient.

3. Unwinding adopts photoelectric automatic correction correction system to make irregular materials cut normally.

4. The circular knife cuts the waste side automatic discharge device.

5. Hydraulic automatic feeding, with air expansion shaft.

6. Rail type automatic cutting device.
